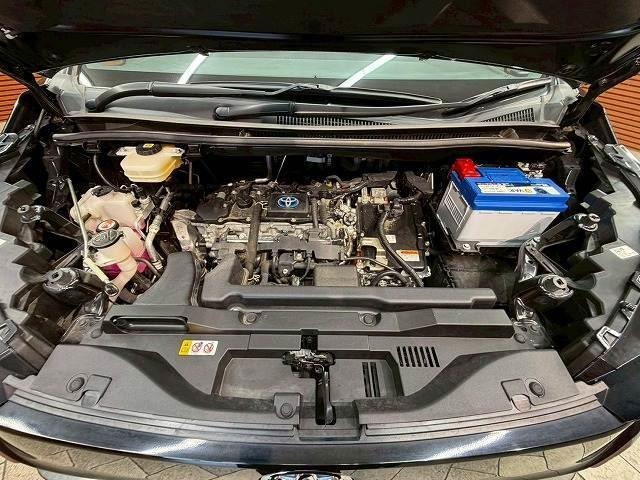

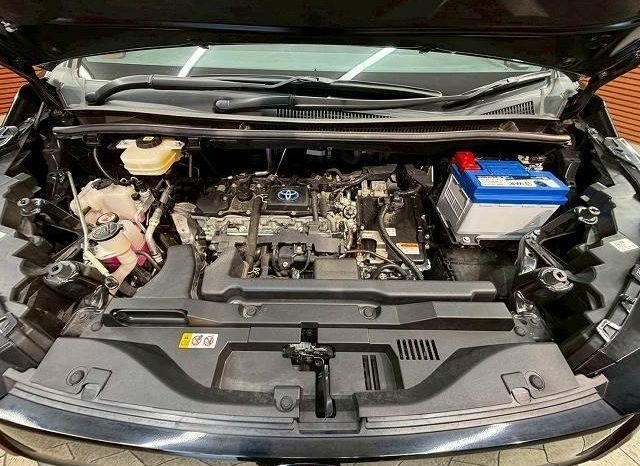

Engine & Hybrid Powertrain

The Voxy Hybrid features Toyota's 5th-generation series-parallel hybrid system, focusing heavily on urban fuel efficiency and smooth transitions.

  • Engine Model: 2ZR-FXE

  • Engine Type: 1.8-liter (1,797 cc) In-line 4-cylinder DOHC 16-valve VVT-i

  • Engine Power: ~98 hp (72 kW) @ 5,200 rpm

  • Engine Torque: 142 Nm @ 3,600 rpm

  • Electric Motor Power: 94 hp (70 kW) front motor (plus an additional rear motor if equipped with E-Four)

  • Combined System Output: ~138 hp (103 kW)

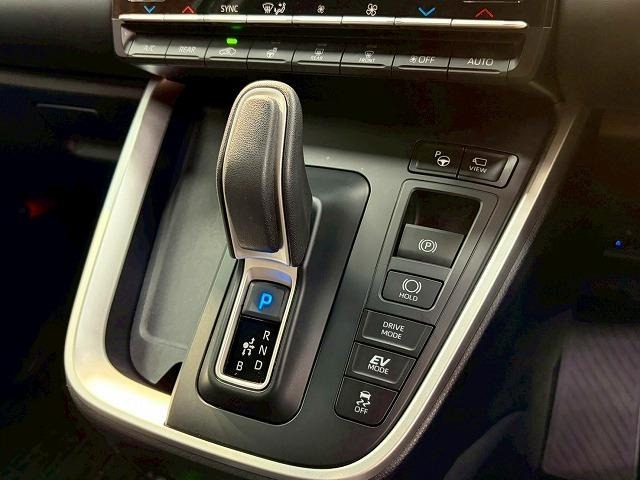

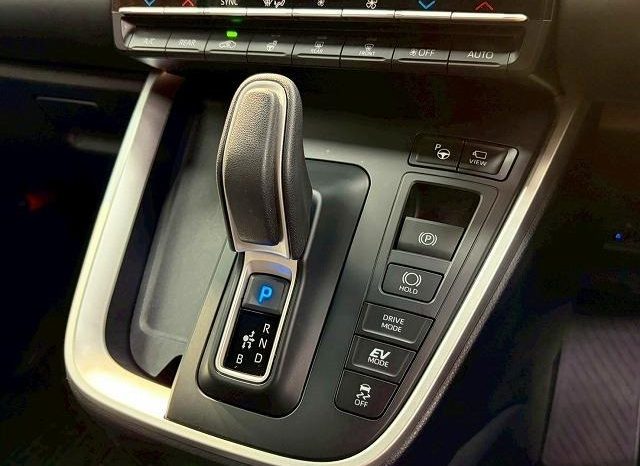

  • Transmission: E-CVT (Electronic Continuously Variable Transmission)

  • Drive Type: Available in Front-Wheel Drive (2WD) or E-Four (Electronic 4WD system)

Dimensions & Capacities

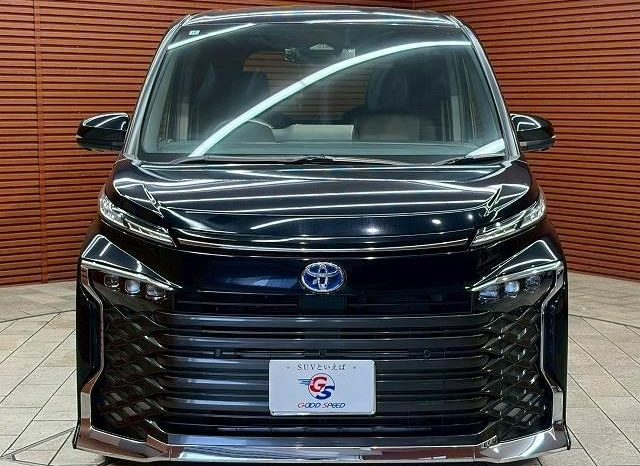

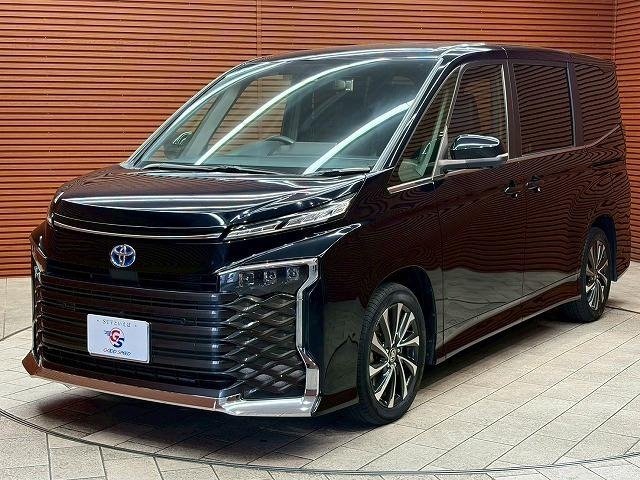

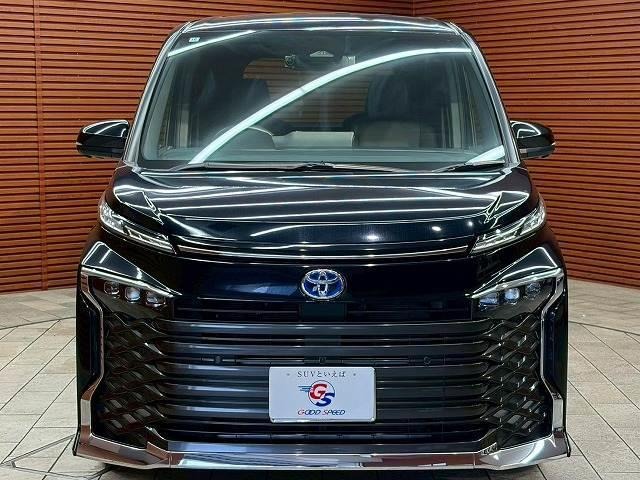

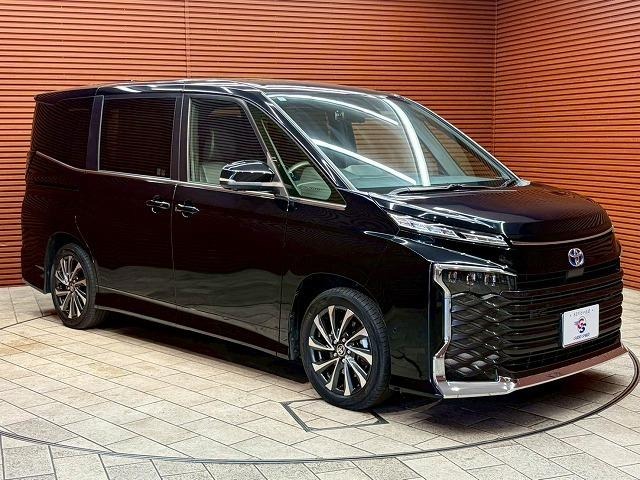

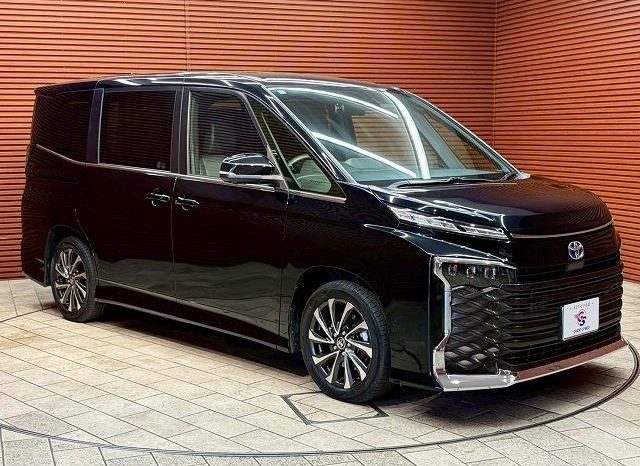

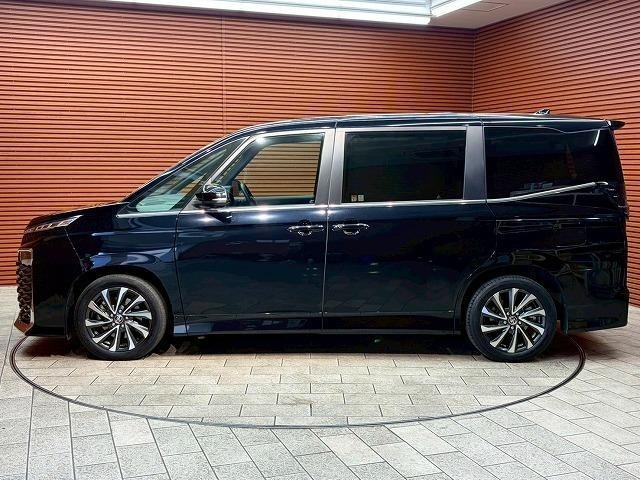

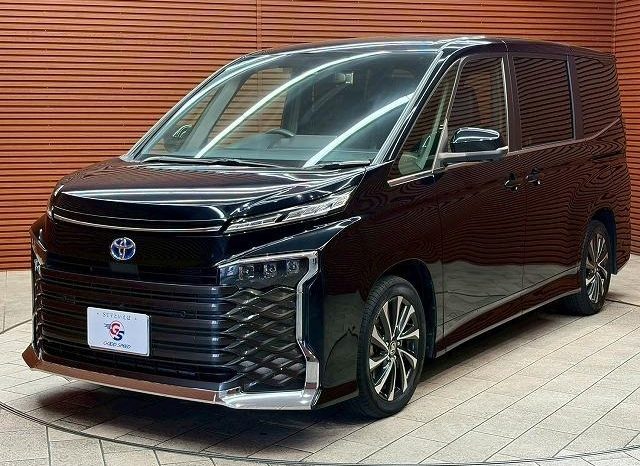

The "S-Z" trim features aggressive aero bumpers, subtly altering its footprint compared to lower trims.

  • Overall Length: 4,695 mm

  • Overall Width: 1,730 mm

  • Overall Height: 1,895 mm (2WD) / 1,925 mm (E-Four)

  • Wheelbase: 2,850 mm

  • Ground Clearance: ~140 mm

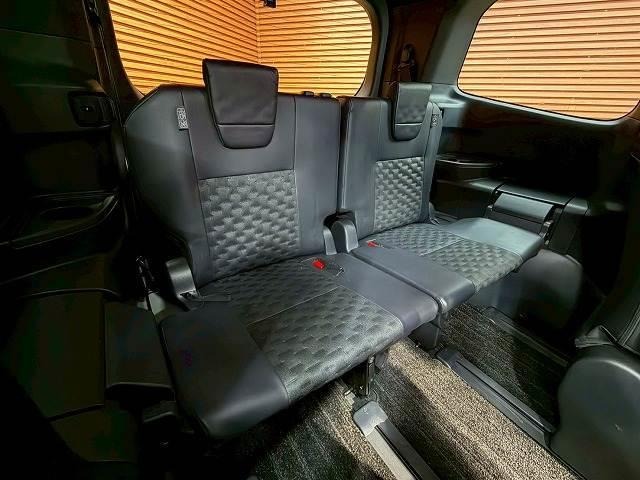

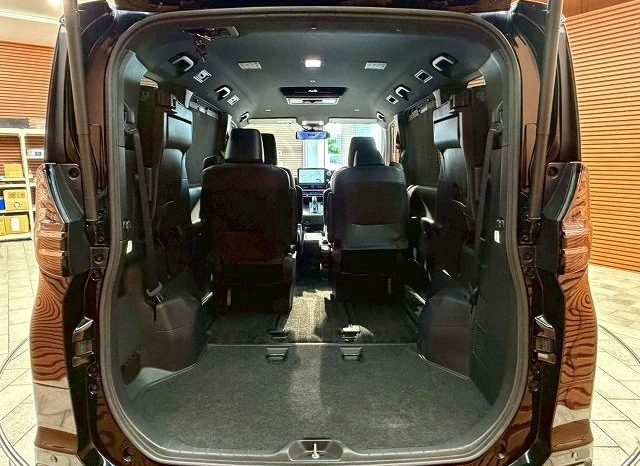

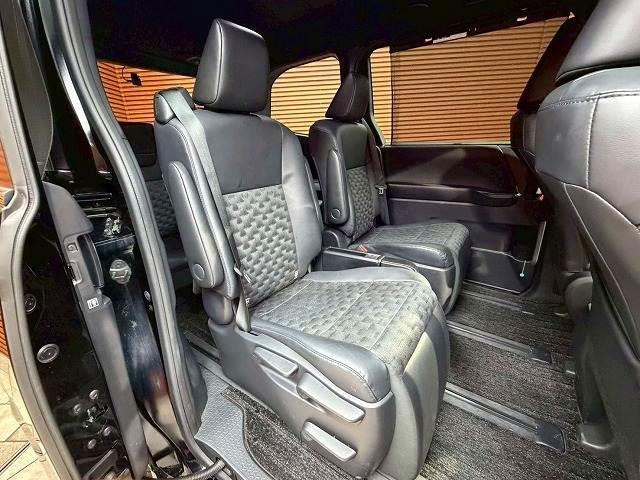

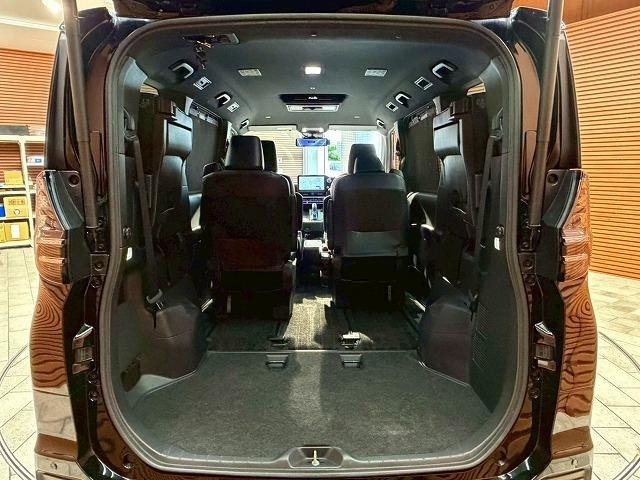

  • Seating Capacity: 7 passengers (Features 2nd-row Captain Seats)

  • Fuel Tank Capacity: 52 Liters

  • Kerb Weight: ~1,670 kg to 1,710 kg (depending on 2WD vs. E-Four)

Fuel Economy & Performance

  • Fuel Consumption: ~23.0 km/L to 23.4 km/L (WLTC cycle) depending on driving conditions and drivetrain.

  • Top Speed: Electronically limited to ~180 km/h

  • Minimum Turning Radius: 5.5 meters

Chassis, Wheels & Suspension

  • Front Suspension: MacPherson strut type coil spring

  • Rear Suspension: Torsion beam type coil spring

  • Brakes: Ventilated discs (Front and Rear)

  • Tyre/Rim Size: 205/55R17 (17-inch Aluminum Alloy wheels exclusive to the S-Z grade)

Key Features (S-Z Premium Package)

As the highest-tier grade, the S-Z comes highly optioned from the factory:

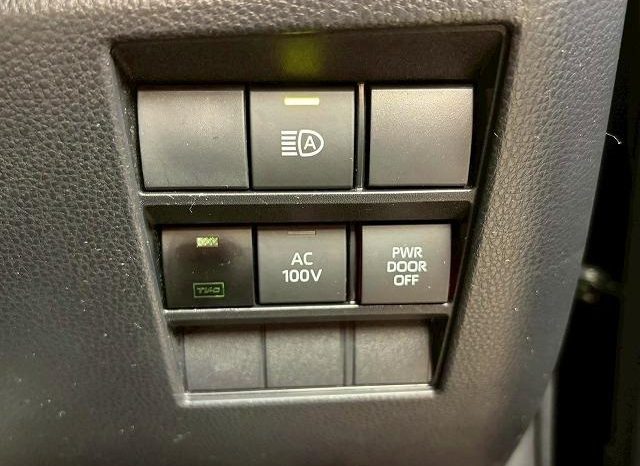

  • Dual Power Sliding Doors: Equipped with hand-free "Kick Sensors" under the side sills.

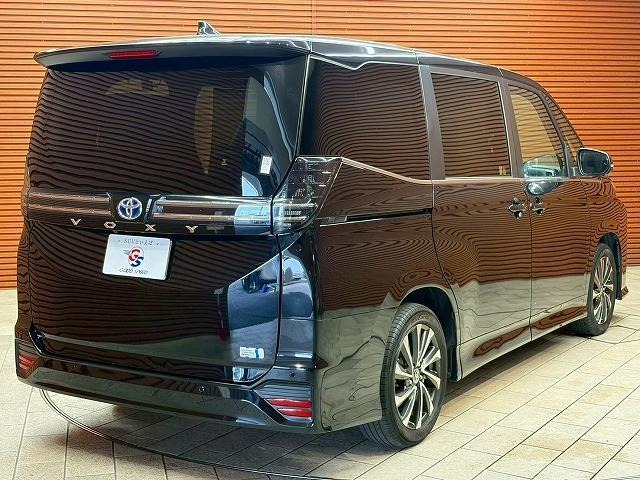

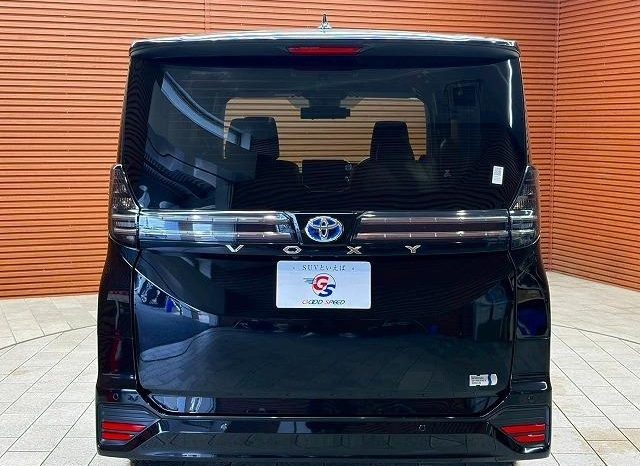

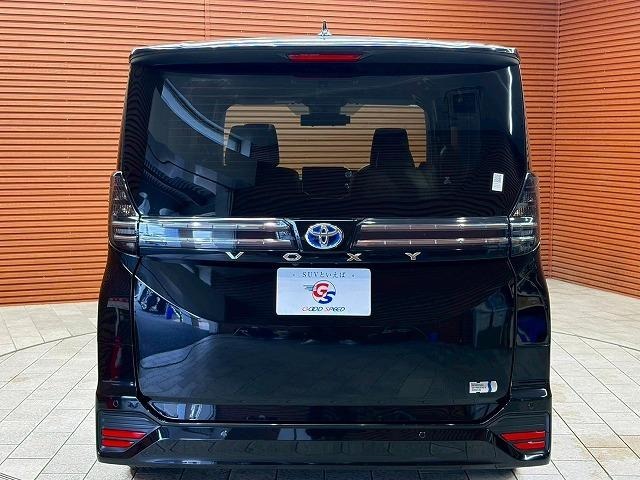

  • Power Tailgate: Features a unique side-switch operation so you can stop it mid-way when parked near walls.

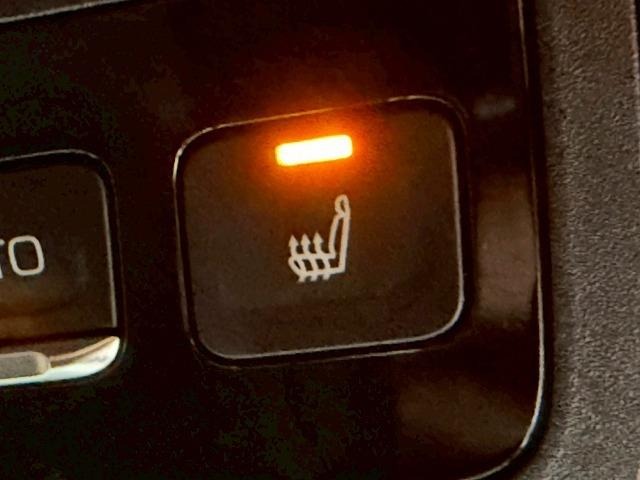

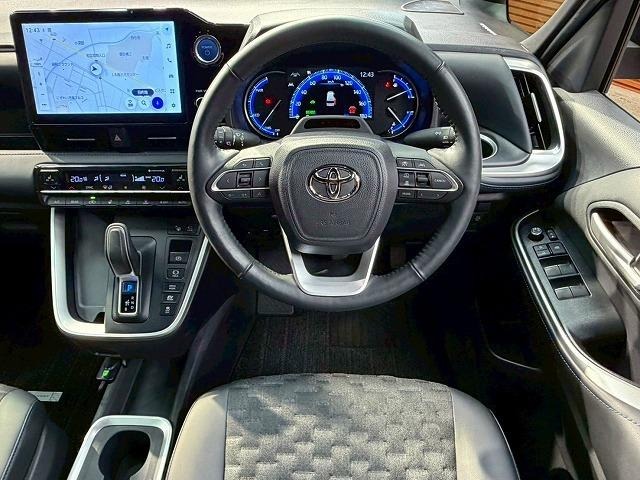

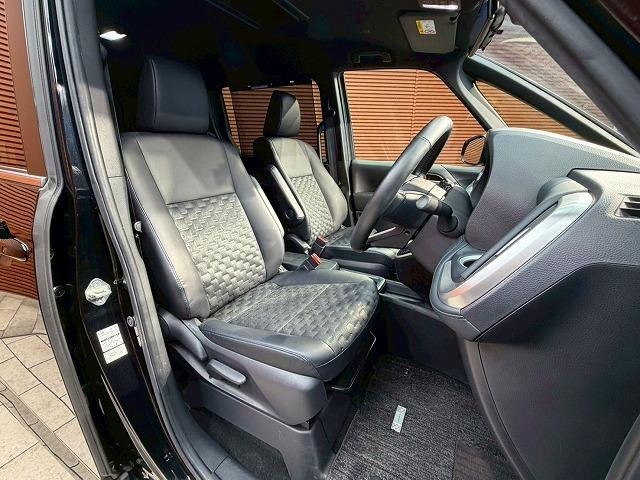

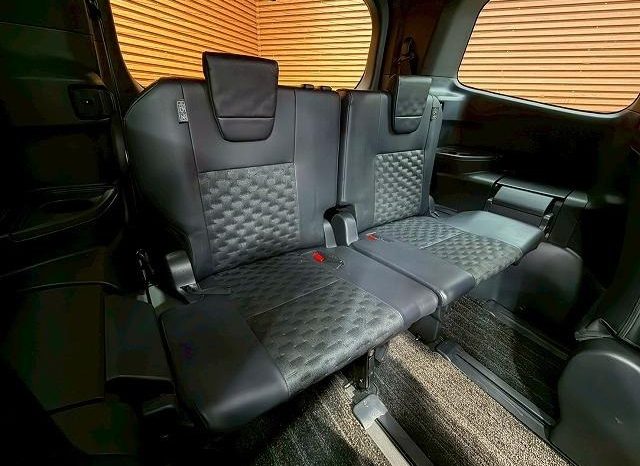

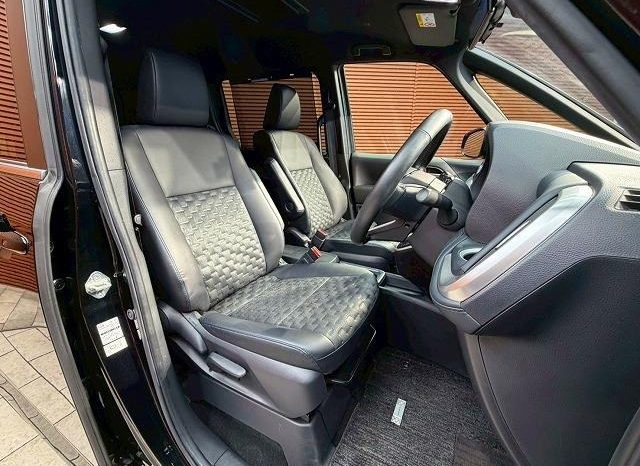

  • Interior Comfort: Premium synthetic leather combined with fabric upholstery, heated front seats, and independent rear air conditioning.

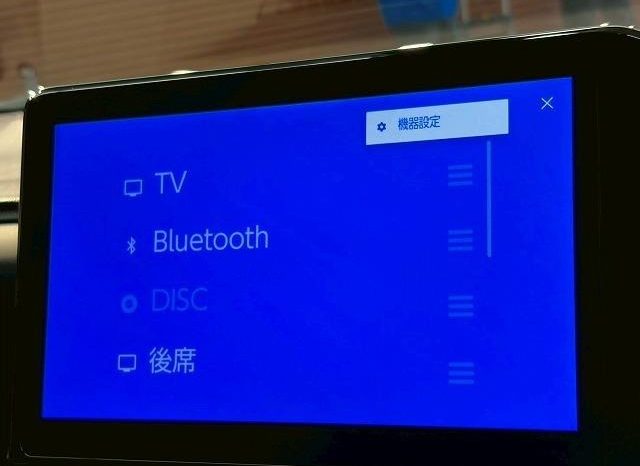

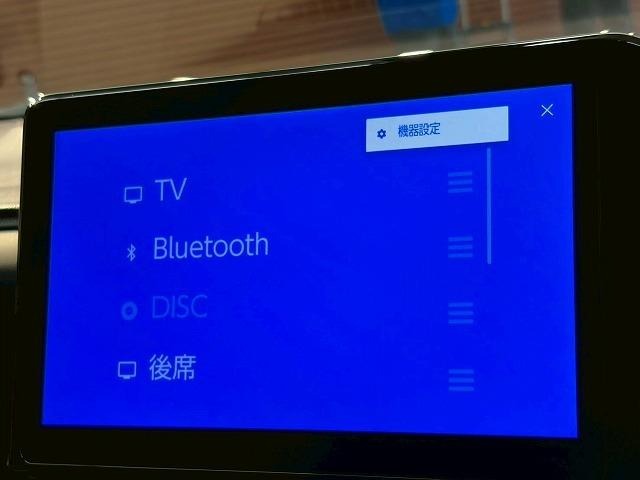

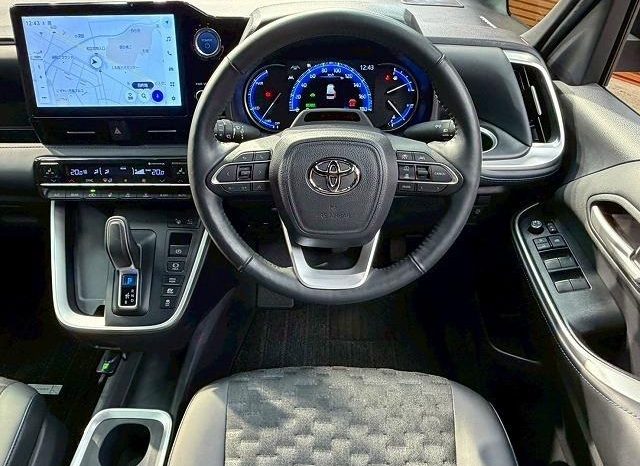

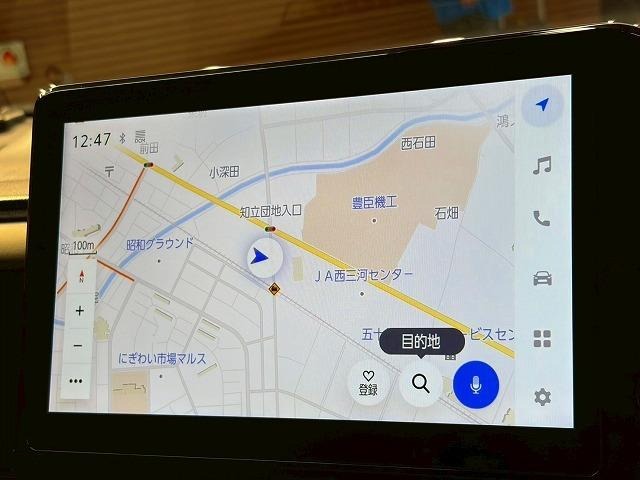

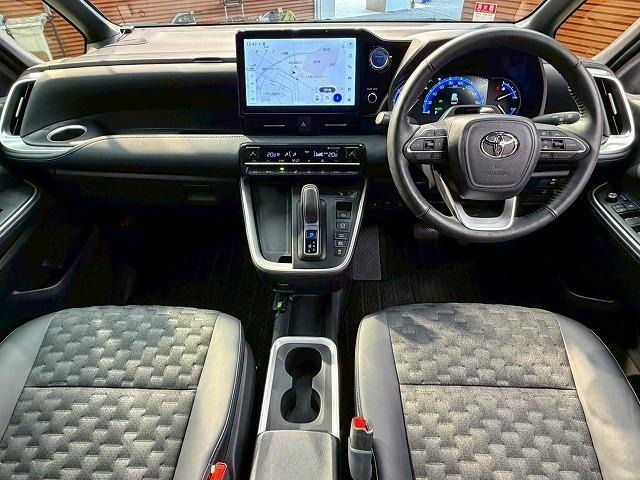

  • Infotainment: 8-inch or optional 10.5-inch HD Display Audio with wireless Apple CarPlay and Android Auto.

  • Toyota Safety Sense 3.0: Includes Pre-Collision System (PCS), Proactive Driving Assist (PDA), Dynamic Radar Cruise Control, Lane Tracing Assist, and Blind Spot Monitor.
