⚙️ Engine & Powertrain

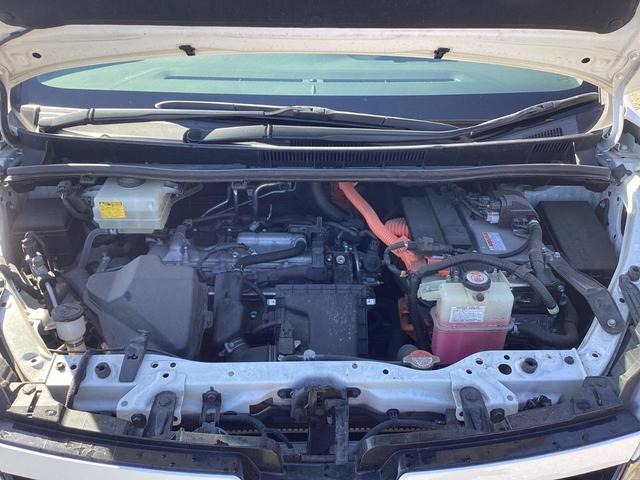

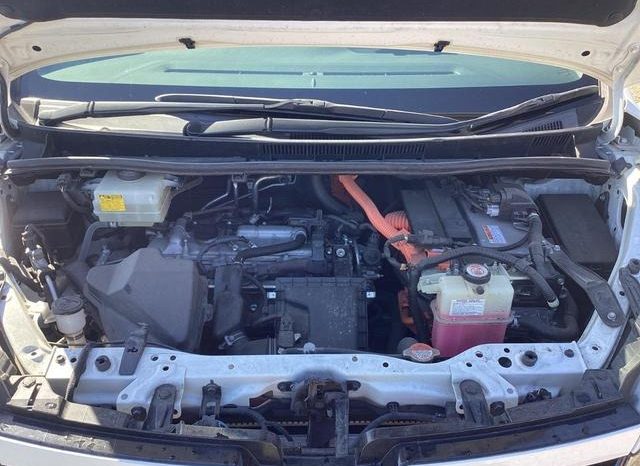

The Voxy Hybrid utilizes Toyota's proven Hybrid Synergy Drive system, pairing a highly efficient Atkinson-cycle petrol engine with an electric motor.

  • Engine Model: 2ZR-FXE (1.8L Inline 4-Cylinder, DOHC 16-valve)

  • Displacement: 1,797 cc

  • Engine Power: 99 hp (73 kW) @ 5,200 rpm

  • Engine Torque: 142 Nm @ 4,000 rpm

  • Electric Motor Power: 80 hp (60 kW)

  • Electric Motor Torque: 207 Nm

  • Combined System Output: Approx. 134 hp (100 kW)

  • Transmission: Electric Continuously Variable Transmission (E-CVT)

  • Drivetrain: Front-Wheel Drive (FF)

  • Battery Type: Nickel-Metal Hydride (Ni-MH)

⛽ Fuel Economy & Capacity

  • Fuel Consumption: Approx. 23.8 km/L (under JC08 test cycles; real-world numbers vary between 18–21 km/L depending on driving style).

  • Fuel Tank Capacity: 50 Liters

  • Fuel Type: Regular Unleaded Petrol

📐 Dimensions & Weight

The Hybrid "X" trim features a narrower body profile (under 1.7 meters wide) compared to the sportier ZS trim, which categorizes it favorably for tight city driving and specific tax brackets.

  • Overall Length: 4,695 mm

  • Overall Width: 1,695 mm

  • Overall Height: 1,825 mm

  • Wheelbase: 2,850 mm

  • Ground Clearance: 160 mm

  • Kerb Weight: 1,610 kg

  • Seating Capacity: 7 people (typically configured with 2nd-row captain chairs)

🛠️ Chassis, Brakes & Suspension

  • Front Suspension: MacPherson strut coil spring

  • Rear Suspension: Torsion beam coil spring

  • Front Brakes: Ventilated Discs

  • Rear Brakes: Solid Discs (equipped with hydraulic cooperative regenerative braking)

  • Tyre Size: 195/65R15 (15-inch steel wheels with full wheel caps standard on the X trim)

  • Minimum Turning Radius: 5.5 meters

🛋️ Key Features (Hybrid X Trim)

The "X" is the entry-level hybrid tier, balancing core comforts without unnecessary visual fluff:

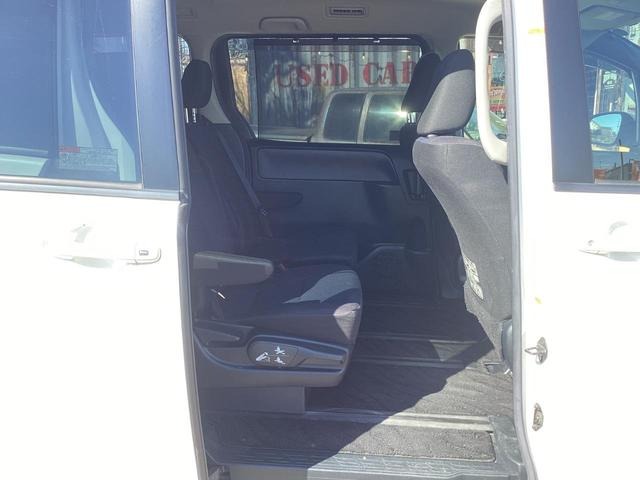

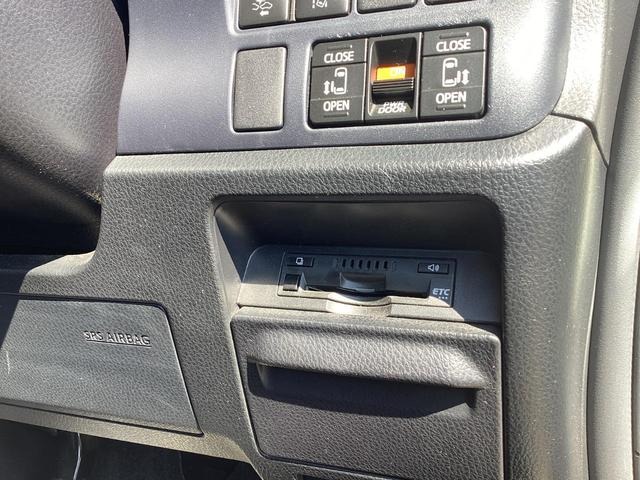

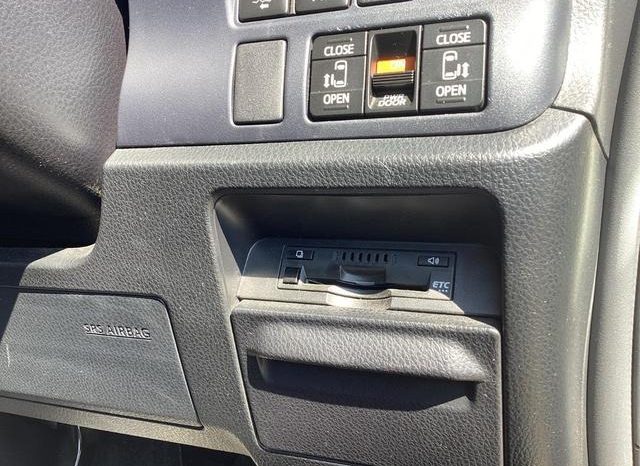

  • Dual Power Sliding Doors: Standard or optional depending on the exact production year, offering easy access to the rear rows.

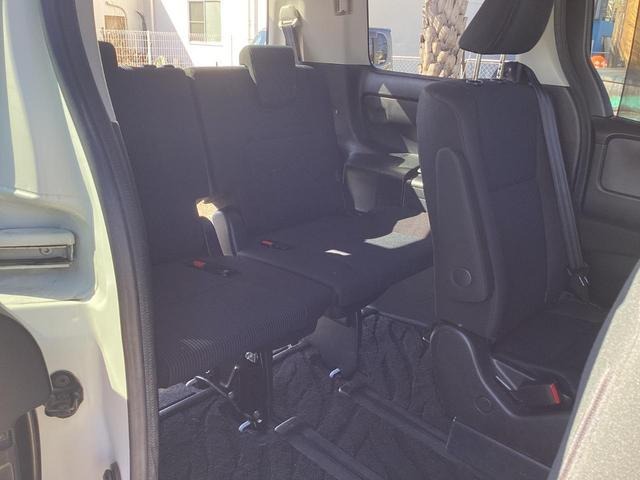

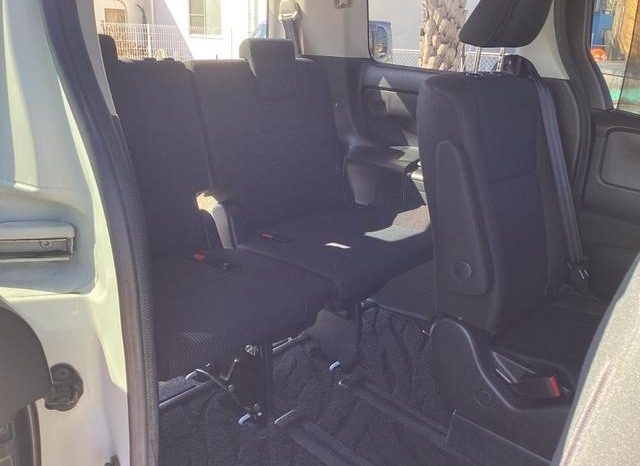

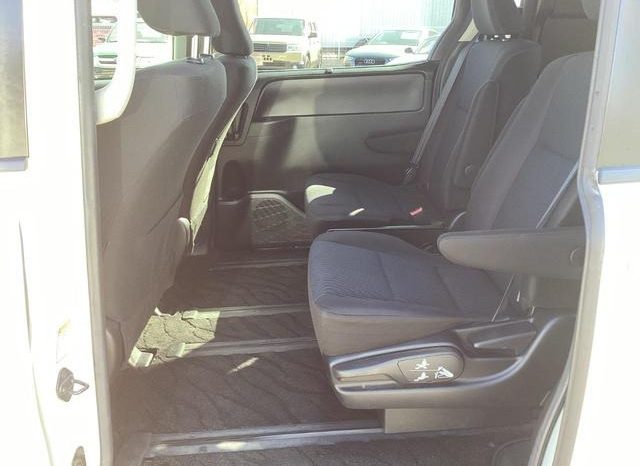

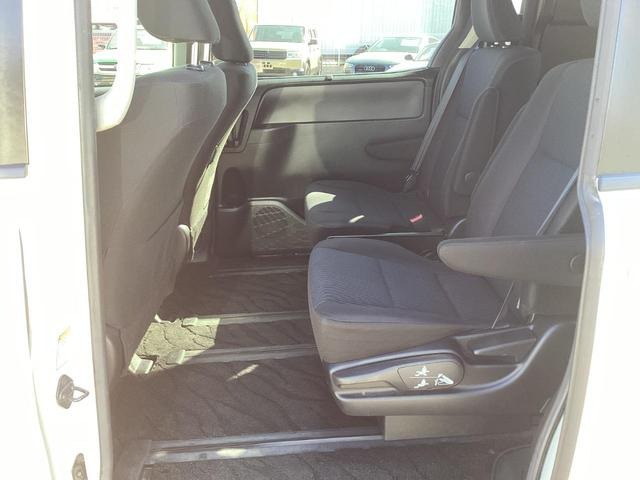

  • Captain Chairs: 2nd-row independent seats that slide forward, backward, and sideways.

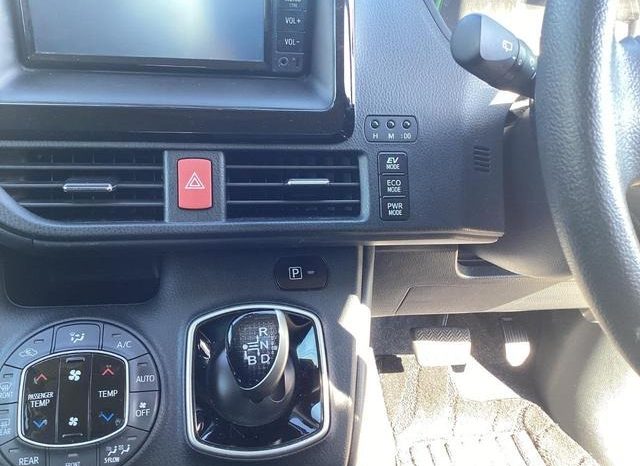

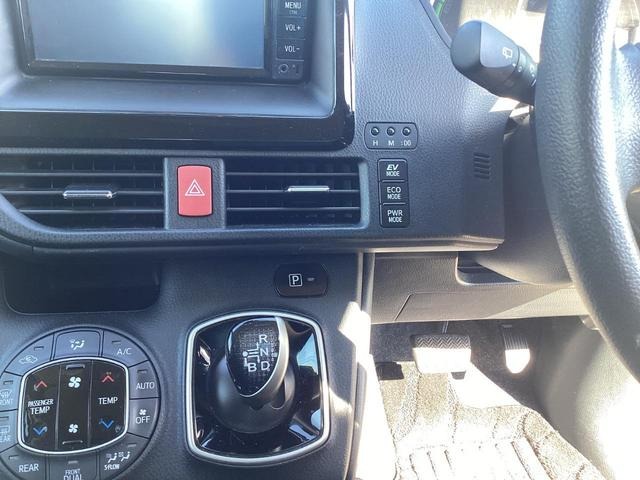

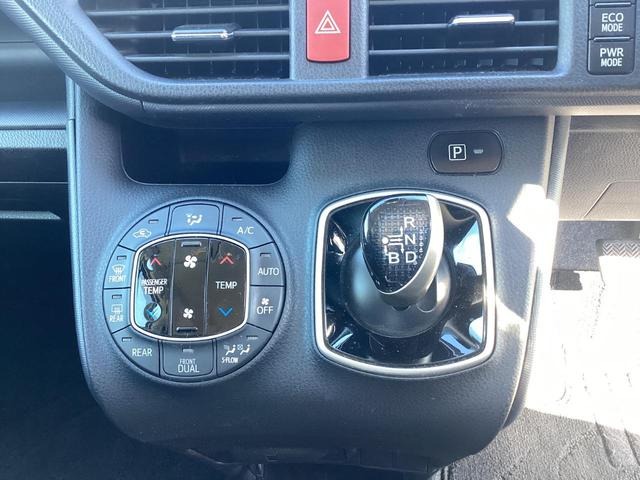

  • Climate Control: Automatic air conditioning with independent rear controls.

  • Safety: Later models (2017+) come standard with Toyota Safety Sense, which includes pre-collision braking, lane departure alert, and automatic high beams.
